B1CE00K1 - 406D9 XU7 INJECTION XU10 INJECTION

CHECK CRANKSHAFT PULLEY

WARNING : for engines fitted with a DAMPERS crankshaft pulley, this must be checked before any removal operations are carried out .

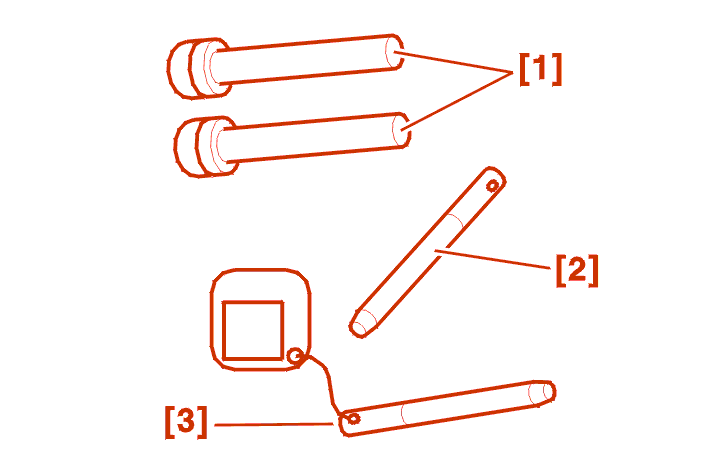

1 - SPECIAL TOOLS

reference description reference reference
[1] camshaft hub setting rods :
- engines : XU10J4R - XU10J4RS - XU7JP4
- engine : XU10J4
(-).0153-AB
(-).0153-M
9041 - TZ
7014 - TM
[2] camshaft sprocket setting rods :
- engines : XU10/806
(-).0132-R
(-).0153-AA
7004 - TG
7018 - TY
[3] crankshaft setting rod (-).0153-G
(-).0132-R		 7014 - TN
7004 - TG

2 - CRANKSHAFT PULLEY CHECK

2 - 1 - PULLEY WITH NO INDEXING

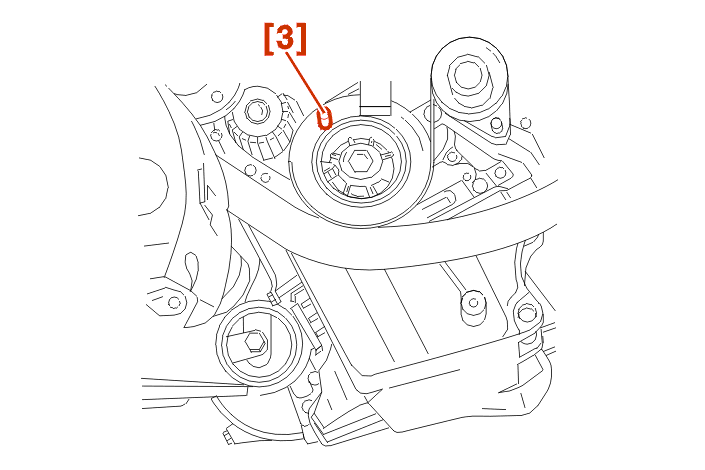

Peg in the order :

XU5JP ENGINE XU7JB ENGINE XU7JP ENGINE

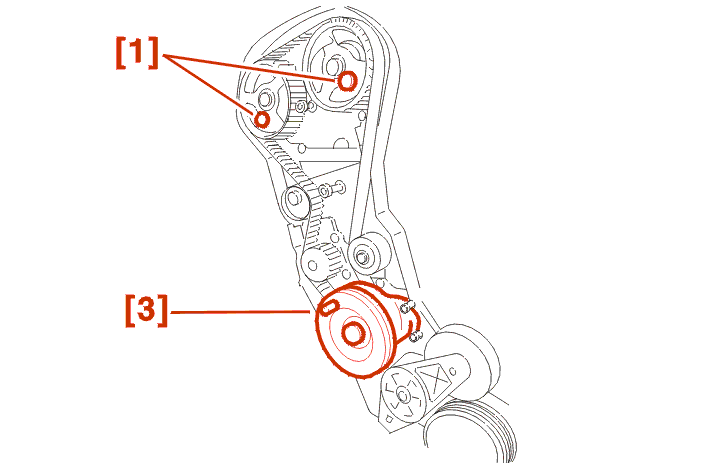

Peg in the order :

ALL MODELS

If the rod [1] does not enter the hole provided in the engine block, when the rods are in place, remove the crankshaft pulley :

2 - 2 - PULLEY WITH INDEXING

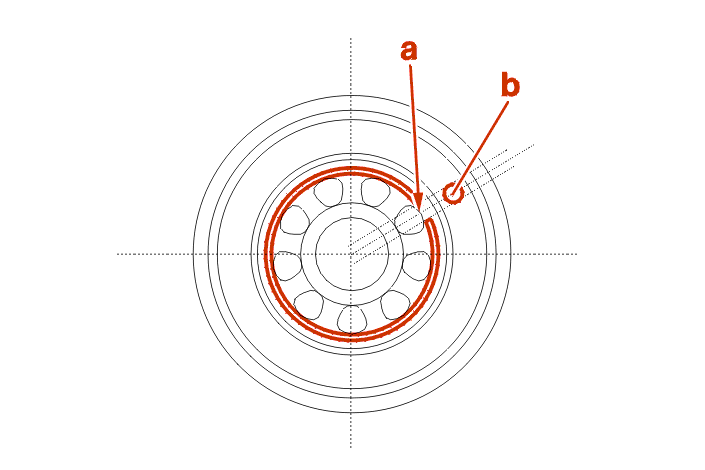

The index mark (b) must be aligned with the axis of the timing hole; If this is not the case, Replace the crankshaft pulley .
