B2CJ0PK1 - 406D9 ML5T GEARBOX

REMOVAL DIFFERENTIAL BOX

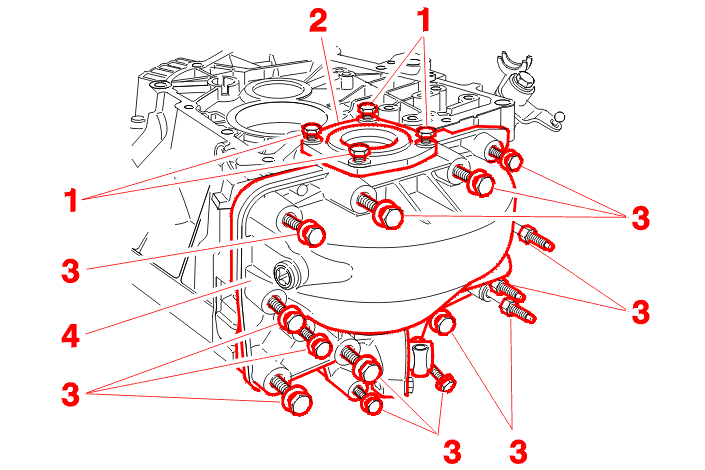

Remove :

• the bolts (1) from the bearing retaining plate (2)
• the bolts (3)
• the bearing retaining plate (2)
• the differential half-casing (4)

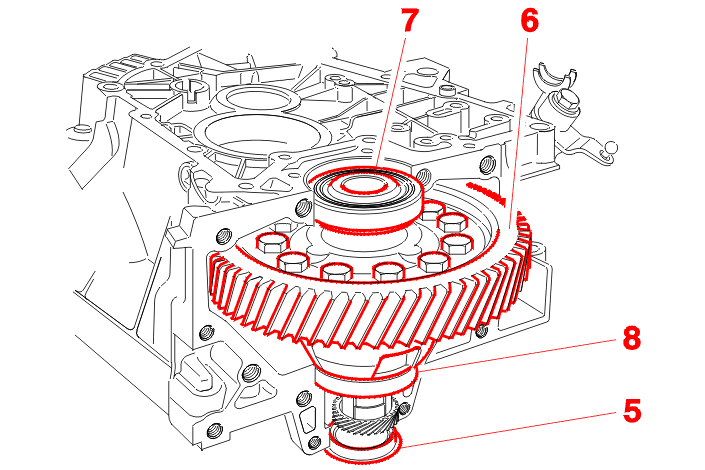

Remove :

• the final drive seal (5), on the speedometer drive side
• the differential (6)
• the bearing outer races (7) and (8)
