C5FG25F1 - 307

REMOVAL - REFITTING INSTRUMENT PANEL

1 - SPECIAL TOOLS

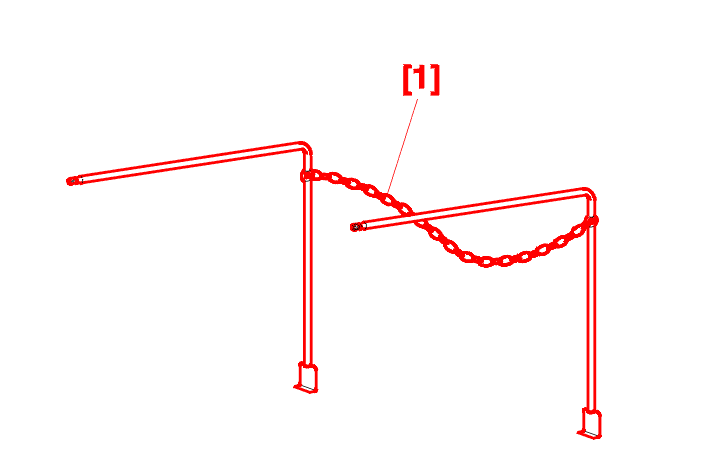

[1] Instrument panel removal tool(s) (-).1212 .

2 - REMOVAL

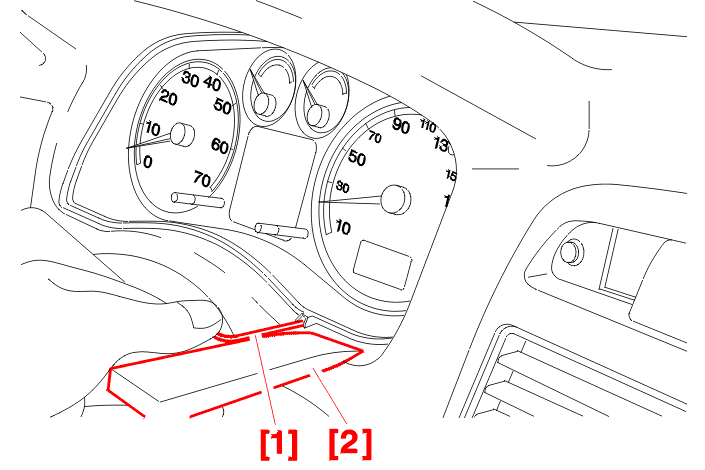

Taking care to protect the fascia, move the instrument panel aside slightly using the plastic spatula [2] .

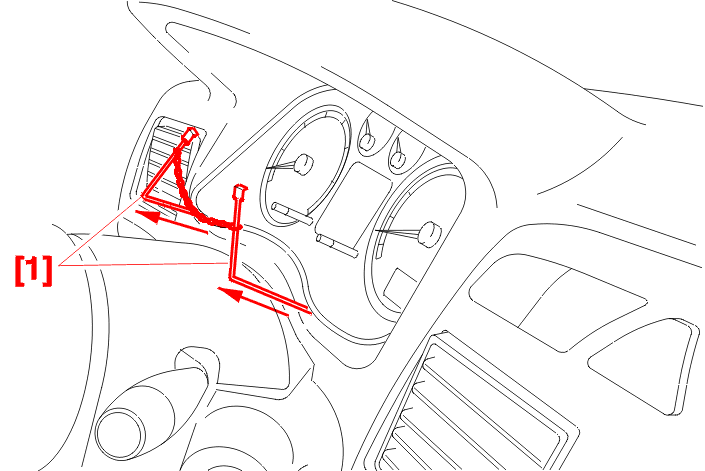

Engage the instrument panel removal tools [1] in the holes in the instrument panel visor .

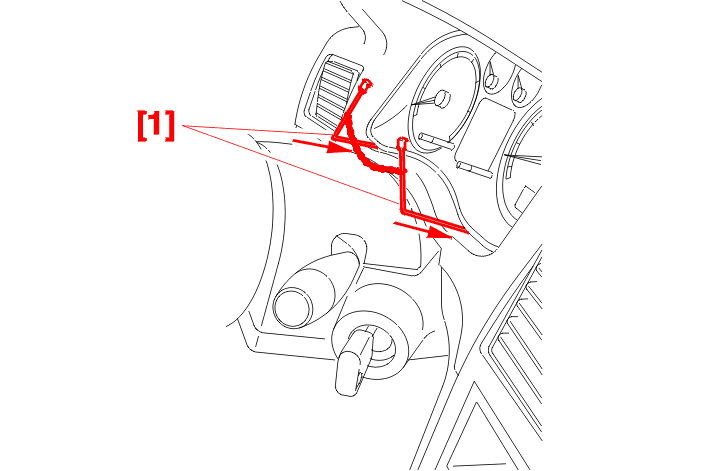

Push the 2 tools [1] until the instrument panel retaining springs are released .

Pull on the extraction tools to detach the instrument panel .

Disconnect the instrument panel connector .

Remove the instrument panel .

3 - REFITTING

Reconnect the instrument panel connector .

Place the instrument panel upper lugs in the locations on the fascia .

Press at the bottom to position the instrument panel .

Test operation .
