C7AP11K1 - 607

FITTING ON-BOARD NAVIGATION SYSTEM

IMPERATIVE : this device must be installed by a professional .

1 - PRESENTATION

(1) On-board navigation system ECU .

(2) GPS aerial .

(3) Lighting stalk (Recall for last voice message) .

(4) Multi-function display .

(5) Control key pad .

(6) Speaker .

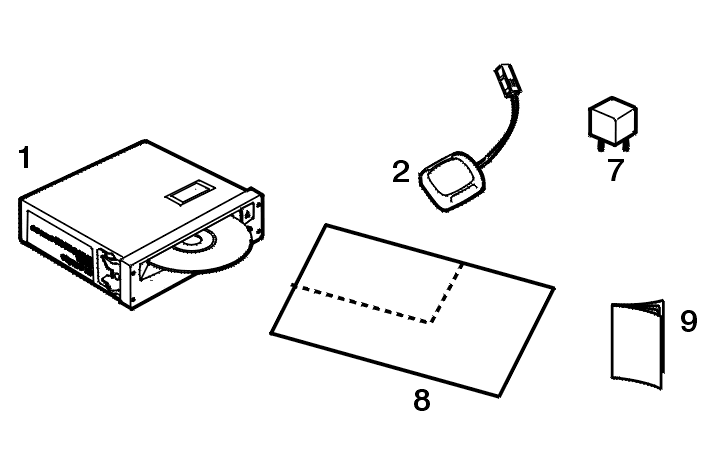

2 - COMPOSITION OF THE SATELLITE NAVIGATION SYSTEM (PART NO. 9707.PN)

reference	description	quantity
1	on-board navigation system ECU	1
2	GPS aerial	1
7	navigation audio line transformer	1
8	template for cutting out	1
9	instruction manual	1

WARNING : additional parts to be ordered, depending on the vehicle range .

reference	description	Part No.	quantity	fitting

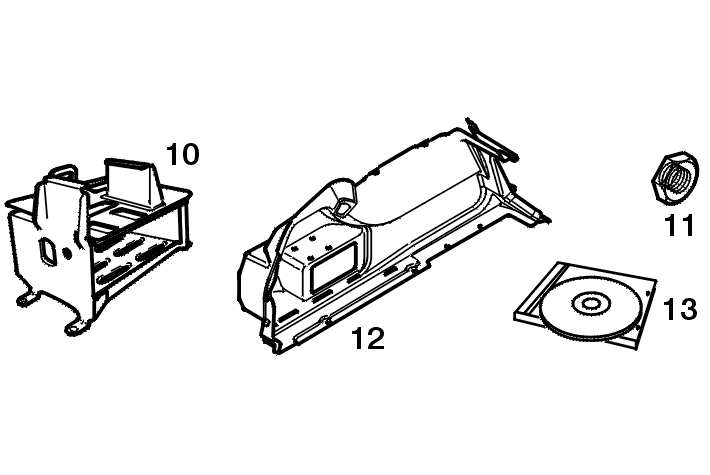

10	ecu bracket	6560.K2	1	all models
11	nuts	6935.A6	3	vehicle without cd changer
12	trim	7465.YK	1	vehicle without cd changer
13	cd rom for mapping Germany Benelux central europe Spain / Portugal FRANCE Great Britain Italy	6563.41 6563.43 6563.45 6563.47 6563.42 6563.44 6563.46	1	all models

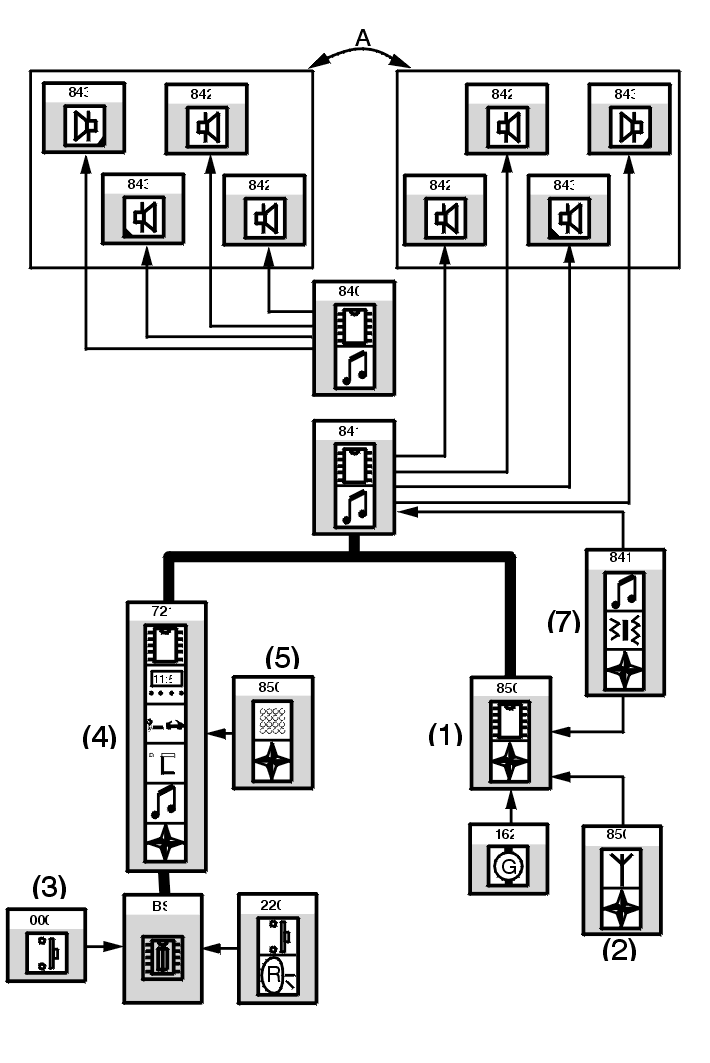

3 - SCHEMATIC DIAGRAM

On-board navigation system (Base level vehicle) .

list of components
0005	screen wiper switch (3)
1620	vehicle speed sensor
2200	reverse lamp switch
7215	multifunction screen (4)
8408	audio amplifier
8410	radio
8414	navigation audio line transformer (7)
8420/8425/8430/8435	speakers
8500	on-board navigation system ECU (1)
8501	GPS aerial (2)
8503	control key pad (5)
BSI	built-in systems interface (BSI)

4 - VEHICLE PREPARATION

Open the bonnet .

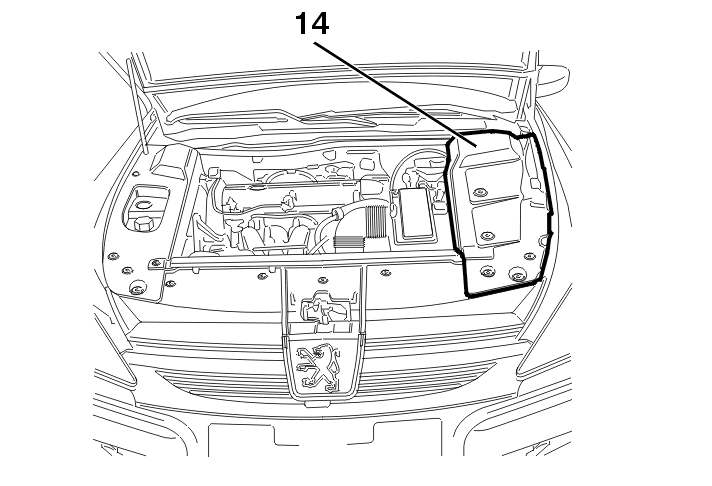

Remove the style cover (14) .

Disconnect the battery + terminal .

Special feature - Dual battery :

disconnect the battery (ignition off)

A battery must be disconnected :

1 minute(s) after the ignition was switched off (fan not operating)
1 minute(s) after the fan has stopped (if operating)

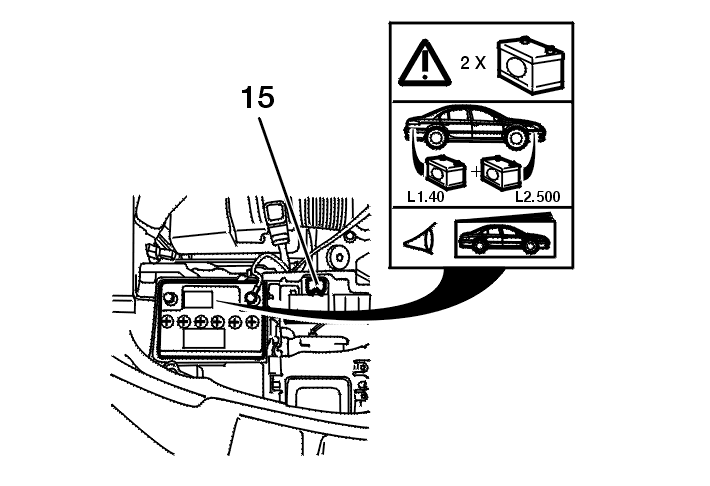

IMPERATIVE : DISCONNECT THE STARTING BATTERY ; remove the auxiliary battery (15) supply fuse to cut off the electrical supply .

5 - FITTING : ON-BOARD NAVIGATION SYSTEM ECU

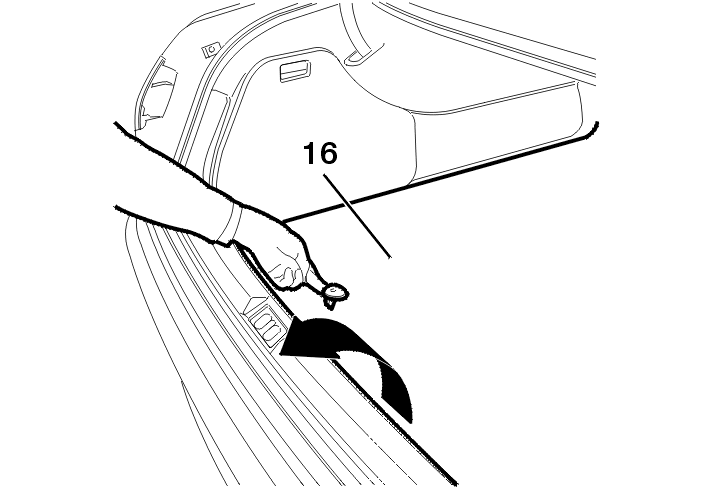

Remove the luggage compartment carpet (16) .

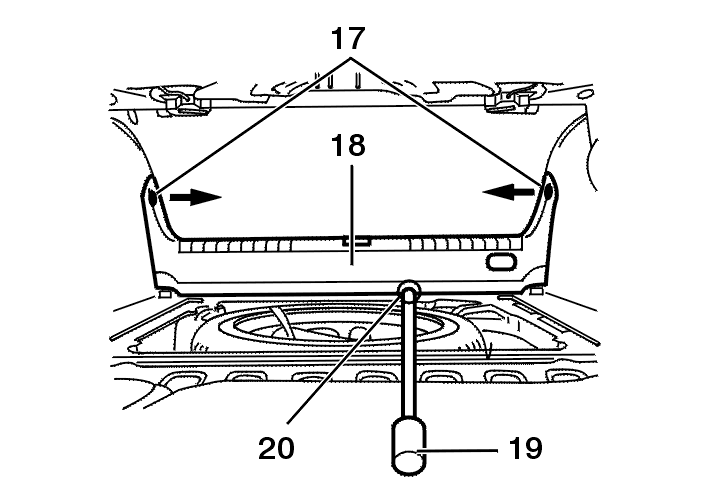

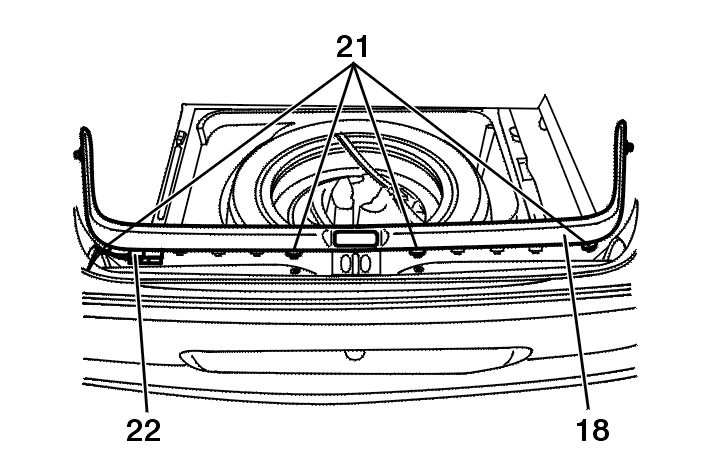

Unclip the side fixings (17) of the boot sill trim (18) .

Pass the tool [19] - (-).1339 into the hole located at (20), then pull towards the inside to unclip the trim at the bottom (3 clips) .

Then pull the trim upwards to detach the clips (18) .

Disconnect the luggage compartment light connector .

Remove the boot sill trim (18) .

5 - 1 - VEHICLE WITH CD CHANGER

Unclip :

the fasteners (23)
the fasteners (24)

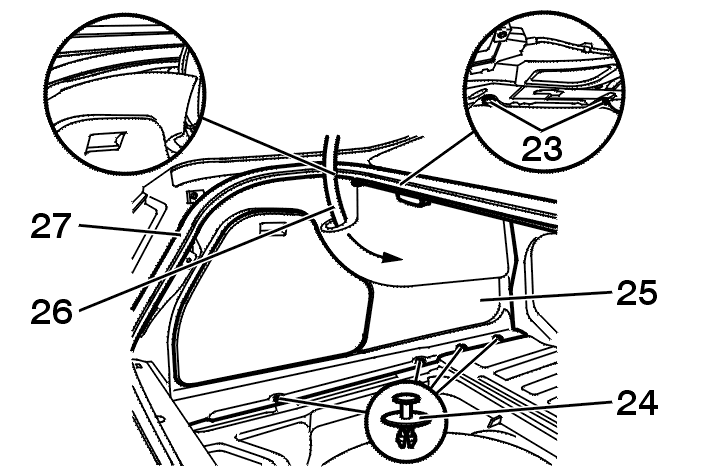

Move aside the boot side trim (25) then release it from the swan neck mounting (26) and the boot seal (27) .

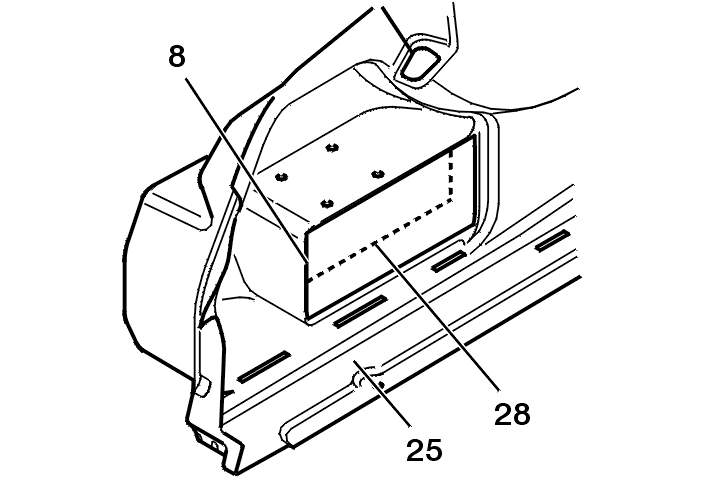

Position the cut-out gauge (8) on the trim (25) .

Mark the contour .

Cut out the trim following the line (28) .

Remove the bolt (29) .

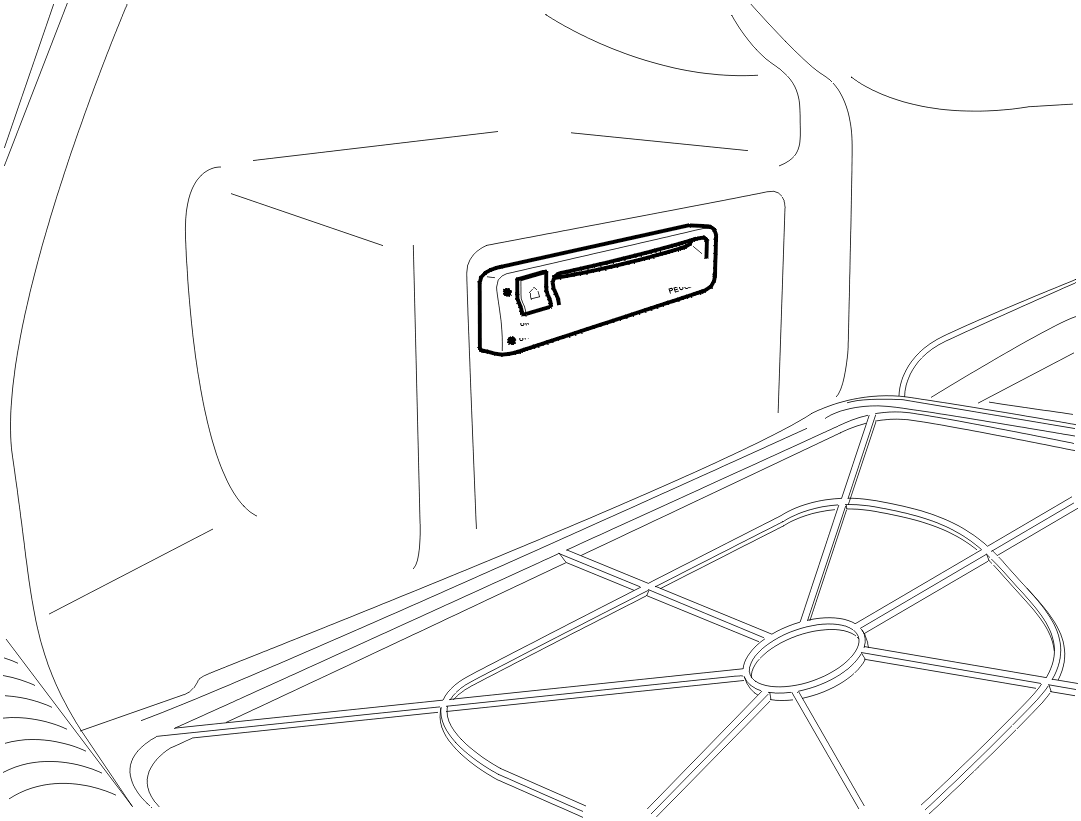

Pull on, and then release, the cd changer (30) .

Disconnect the connector .

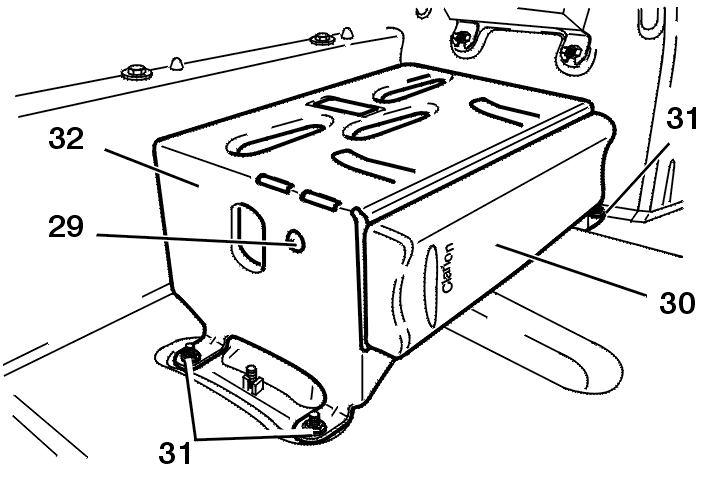

Remove the fixings (31) from the support (32) .

Remove the support (32) .

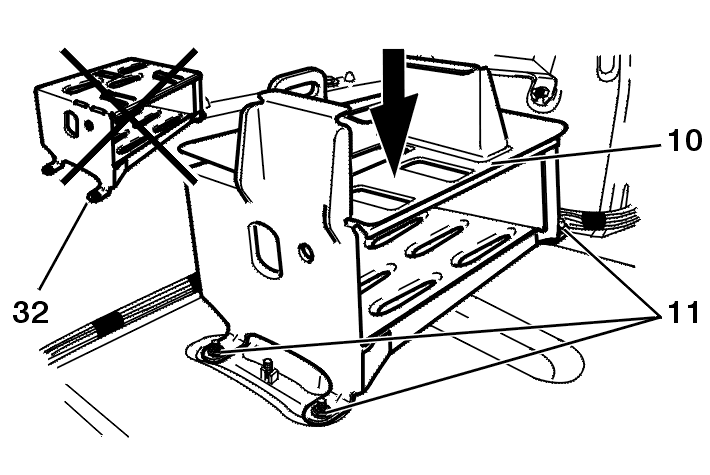

Replace the original support (32) with support (10) : Part No. 6560.K2 .

Fit the support (10) using 3 nuts (11) : Part No. 6935.A6 .

Reconnect the connector (40) to the cd changer (30) .

Slide the cd changer in the support at the bottom .

Refit the cd changer using the bolt (29) .

5 - 2 - VEHICLE WITHOUT CD CHANGER

Unclip :

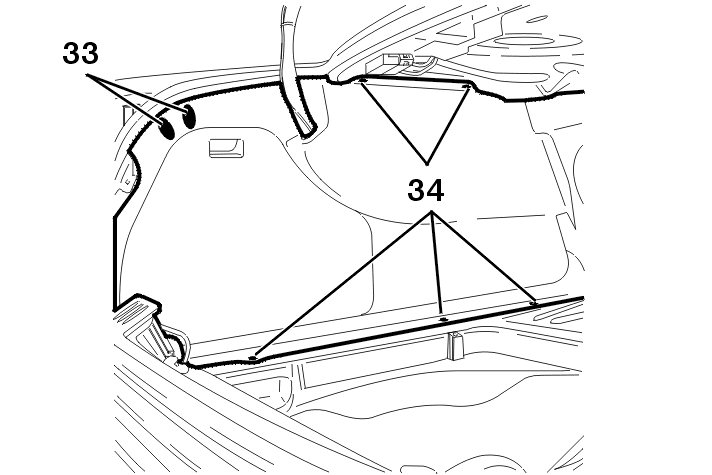

the fasteners (33)
the fasteners (34)

Unclip :

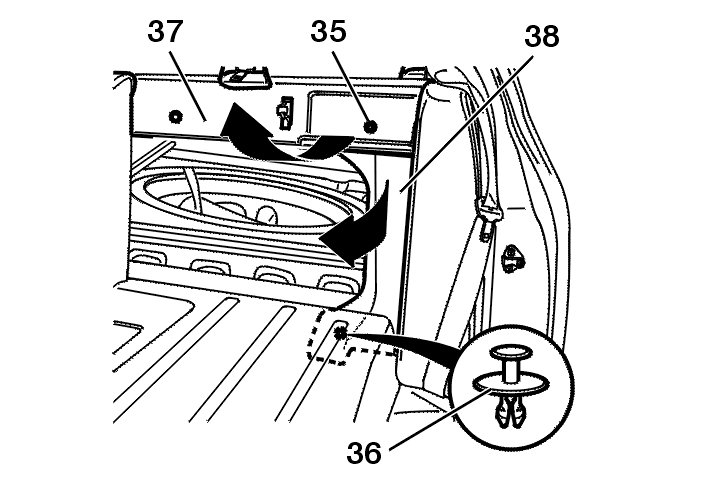

the fasteners (35)
the fasteners (36)

Partially move aside the rear parcel shelf (37) .

Detach the side trim (38) .

Remove the trim (38) .

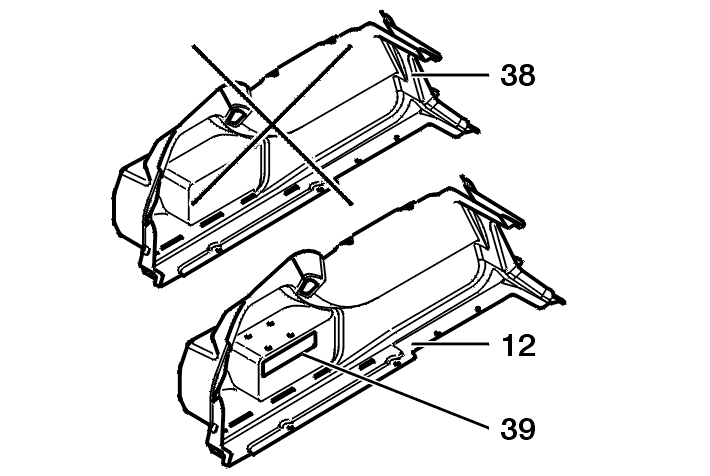

Replace the original boot side trim (38) with trim (12) : Part No. 7465.YK .

Cut out the trim at the top following the pre-marking (39) .

Fit the support (10) using 3 nuts (11) : Part No. 6935.A6 .

5 - 3 - ALL MODELS

Unclamp :

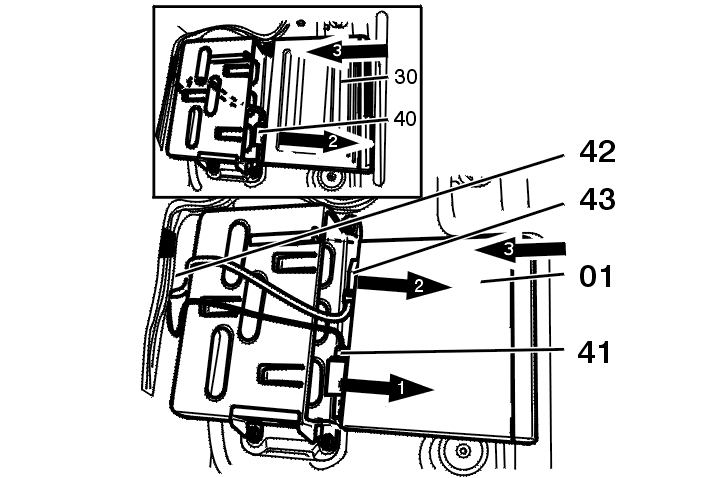

the blue 26-way connector MQS (41)already on the main harness (42)
the grey 1-way connector (43) already on the main harness (42)

Connect :

the blue 26-way connector (41) on the satellite navigation system (1)
the grey 1-way connector (43) on the ecu (1)

Slide the ecu in the support (10) at the top .

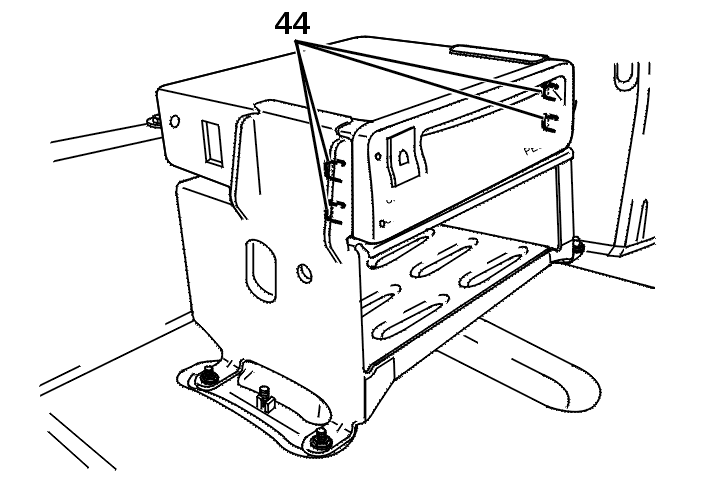

Check that the side pins are correctly clipped (44) .

6 - FITTING : GPS AERIAL

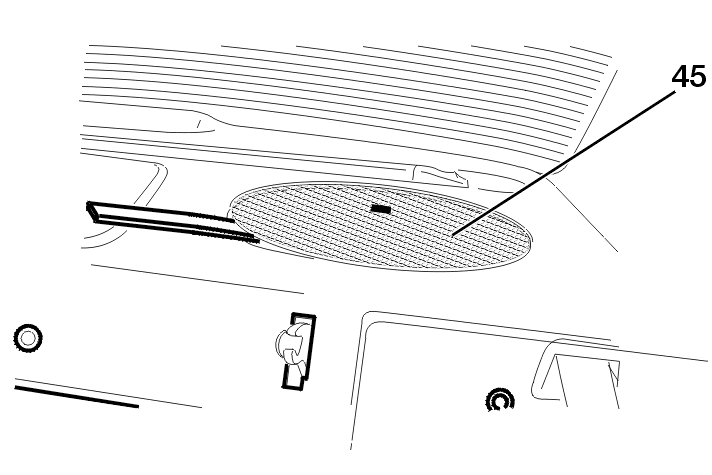

Using a spatula, unclip the speaker grille (45) .

Special feature : Vehicle fitted with rear speaker HIFI :

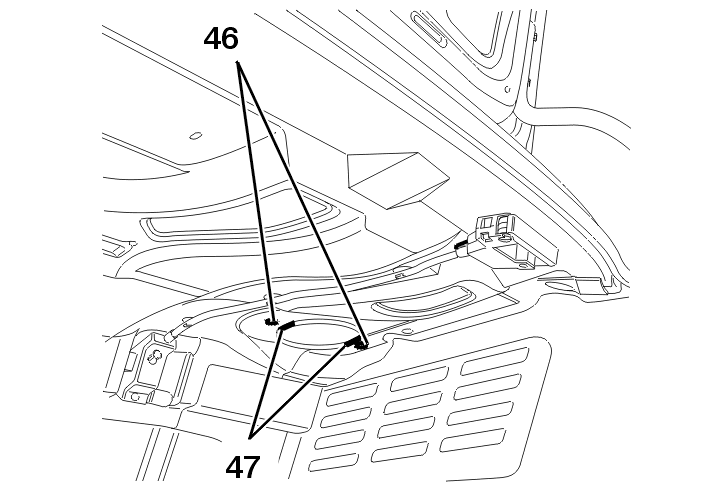

remove the fittings (46) under the rear shelf
press on the 2 clips (47) to release the speaker upwards
disconnect the speaker connector
remove the loudspeaker

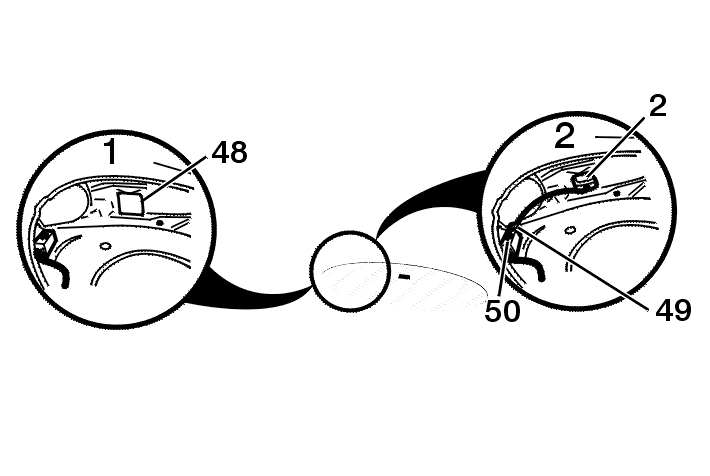

Through the speaker opening, position the gps magnetic aerial (2) in the indentation provided for this purpose .

Connect the connector (50) in the aerial (2) to the grey (49) 1-way connector already on the rear shelf panel .

7 - FITTING : NAVIGATION AUDIO LINE TRANSFORMER

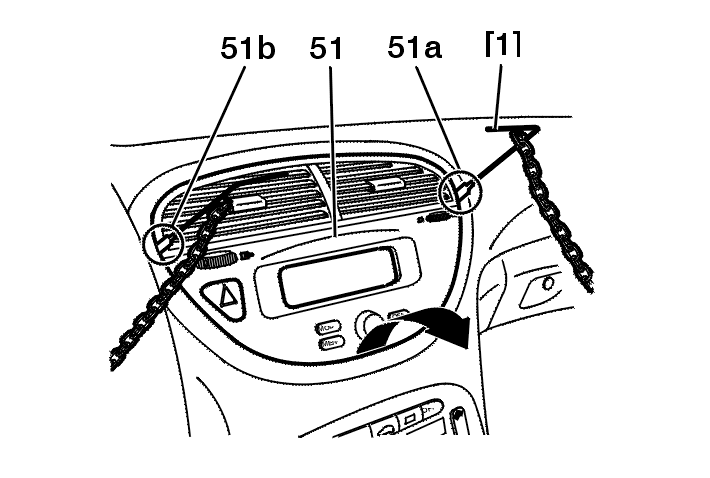

Engage the tool [1] - (-).1212 at point (51a) and point (51b) and pull towards you to unclip the centre panel (51) .

Disconnect the connector .

Remove the panel .

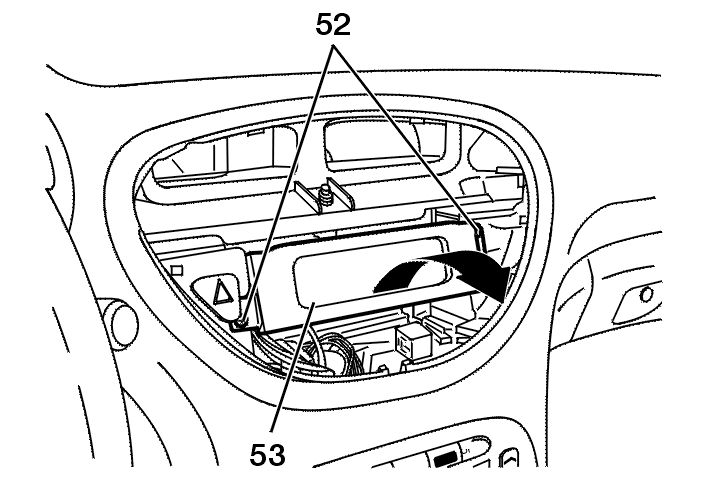

Remove the fasteners (52) .

Release the display (53) .

Disconnect the connector .

Remove the display .

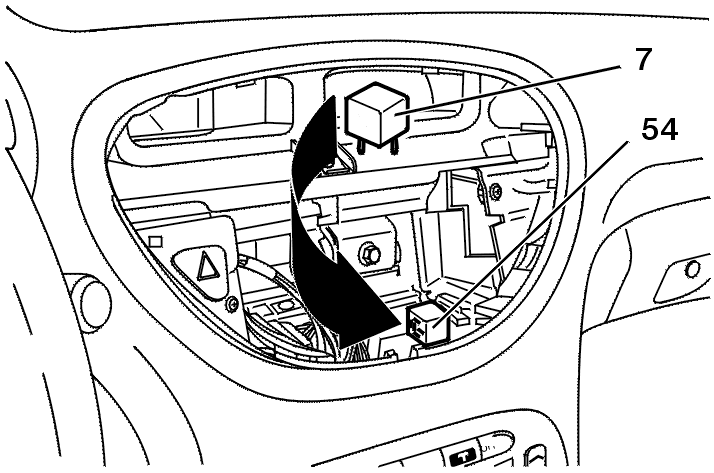

Fit the audio system line transformer (7) on the prepared support (54) .

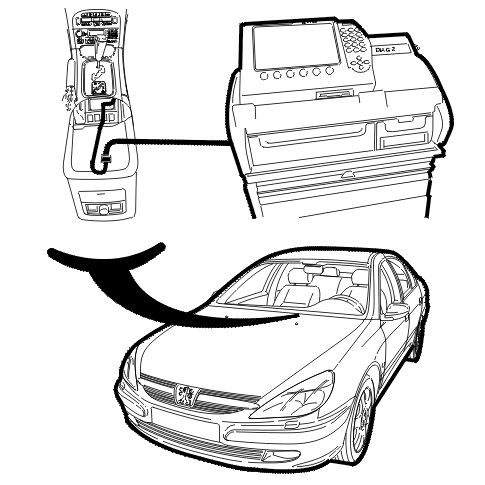

8 - INITIALISATION : TOOL DIAG 2000

IMPERATIVE : the vehicle must be configured after fitting so that the satellite navigation system can operate .

A =Consultation and diagnosis per vehicle .

B = Information DIAG 2000 .

C = Choice of vehicle type .

D = Select the type of vehicle to be diagnosed using the up, down, right and left arrows .

E = Cars .

F = Vans .

Z = 406 coupe .

A = Consultation and diagnosis per vehicle .

G = Vehicle identification :

G1 = enter 0000 followed by the DAM (build code) number
G2 = ignore the last two characters (they denote only the manufacturing centre)

G = Vehicle identification .

H = Enter the number for accurate identification of the vehicle .

A = Consultation and diagnosis per vehicle .

I = Diagnosis .

J = Downloading .

K = Replacement parts .

L = Dealer fit .

M = Activation and disarming of the functions .

L = Dealer fit .

N = When fitting an accessory, it is necessary to reconfigure the vehicle .

O = This menu enables you to automatically configure all the ECUs necessary .

P = These accessories are :

P1 = alarm
P2 = on-board navigation system
P3 = CD player
P4 = dual battery unit / battery
P5 = tyres

L = Dealer fit .

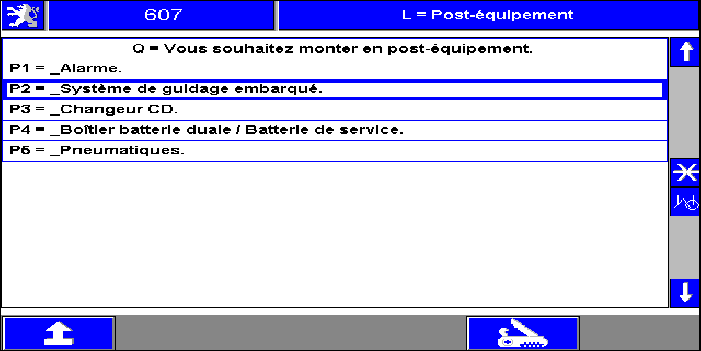

Q = You wish to fit as an accessory .

P1 = Alarm .

P2 = On-board navigation system .

P3 = CD player .

P4 = Dual battery unit / Battery .

P5 = Tyres .

P2 = On-board navigation system .

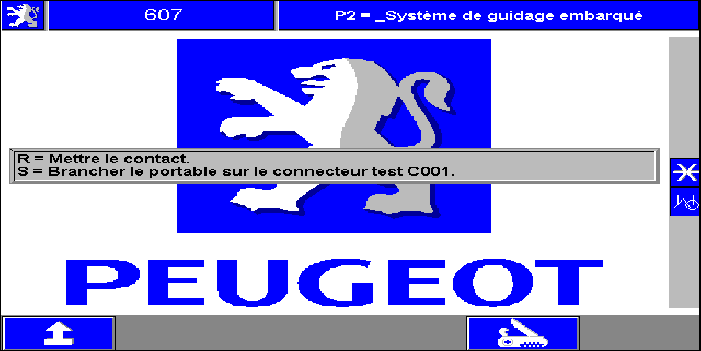

R = Switch on the ignition .

S = Connect the portable to the test connector C001 .

P2 = On-board navigation system .

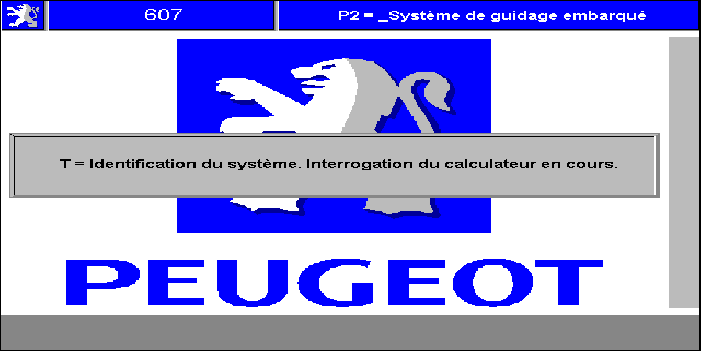

T = System identification - Reading of the ECU in progress .

P2 = On-board navigation system .

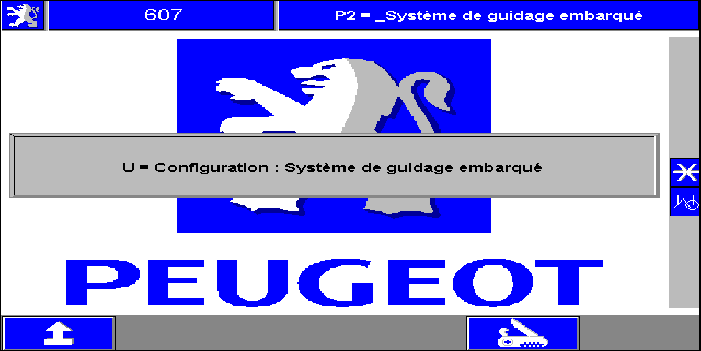

U = Configuration : On-board navigation system .

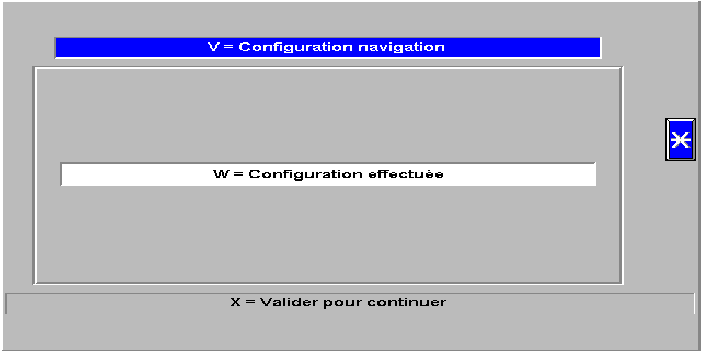

V = Navigation configuration .

W = Configuration carried out .

X = Validate to continue .

9 - ACTIVATION

Carry out the following operations :

switch on the satellite navigation system (satellite navigation system display and ecu light up)
initialise the system by inserting the CD ROM in the satellite navigation ECU
drive in such a way that gps is recognised (this occurs between 2 and 20 minutes)

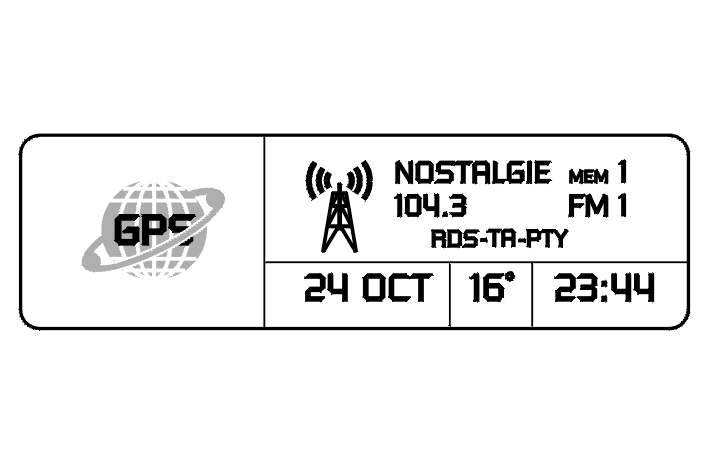

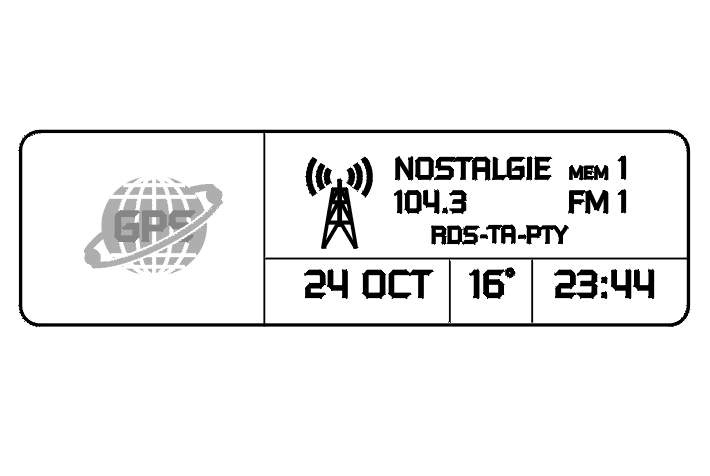

When the satellite reception is good, the indication GPS will appear in bold in the globe .

If the satellite reception is not good, the indication GPS will appear in grey in the globe .

NOTE : the GPS recognition (globe) will only appear on the base screen (date mode), or in radio, cassette or CD player mode, but not during guidance .

10 - REFITTING THE COMPONENTS

Proceed in the reverse order to removal .

Special feature - Dual battery :

do not reconnect the battery in the ignition controlled positive position
after reconnecting the battery, reinitialise the ecus (audio equipment, displays/multifunction screen) and the one-touch electric windows
check the correct electrical operation of the equipment

11 - HANDBOOK

See vehicle handbook .

NOTE : notice valid subject to product modification .
