Electrical / RCL/ATA/PSE / Anti-Theft Alarm System (ATA) ATA
    - Function Diagrams

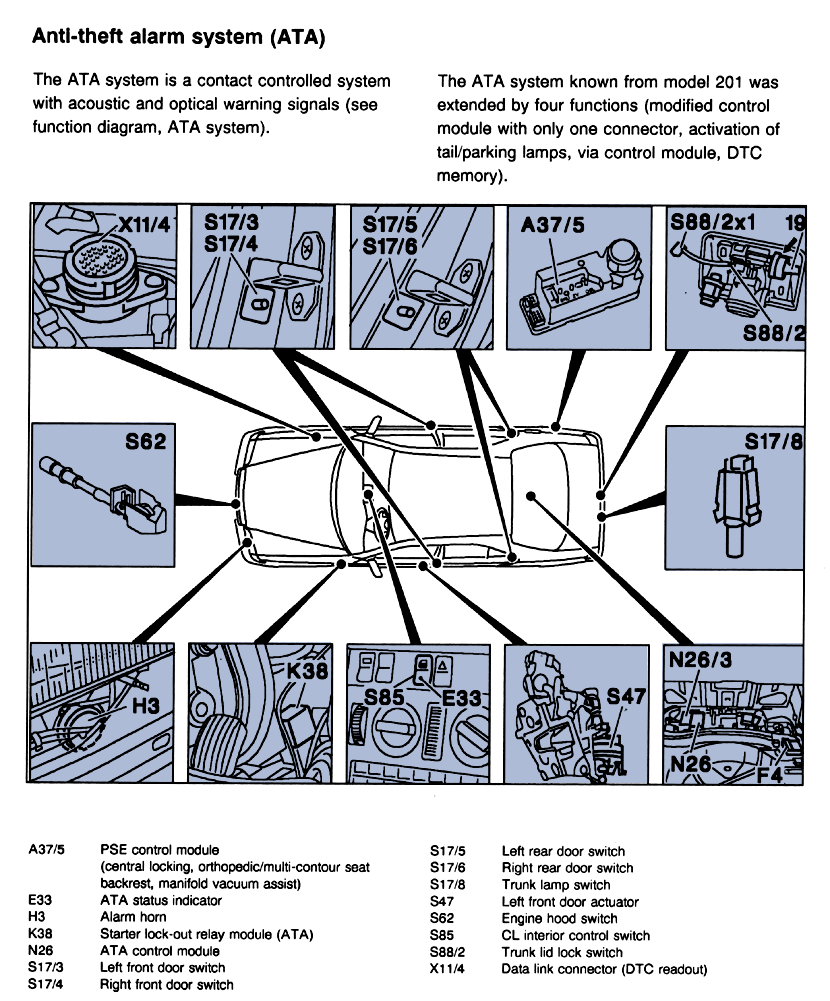

The anti-theft alarm system of model 202 differs from model 201 in that it has a modified control module with only one connector
