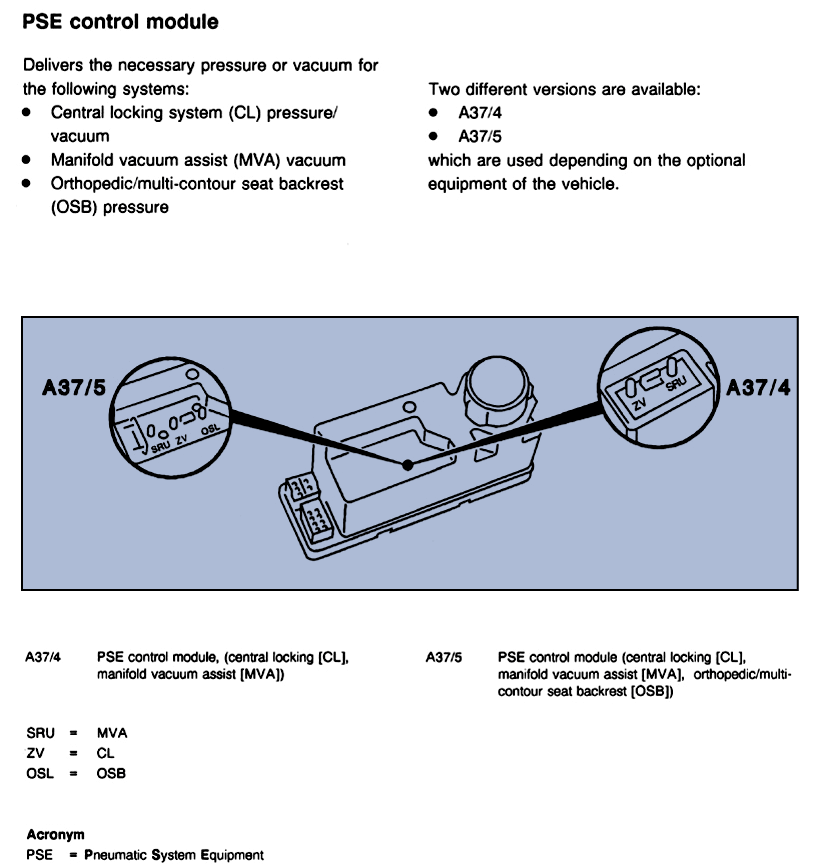

Electrical / RCL/ATA/PSE / PSE Control Module PSE Control Module
    - Internal Diagram
    - Technical Data

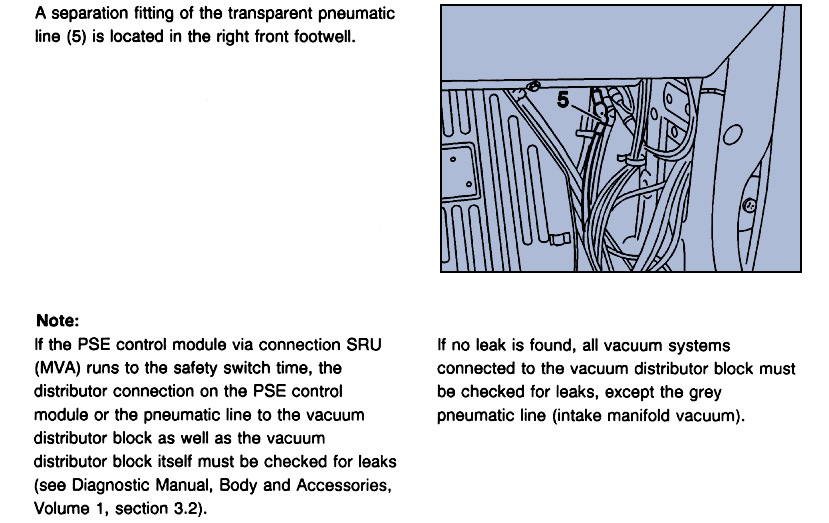

    - Pneumatic Distributor Connection

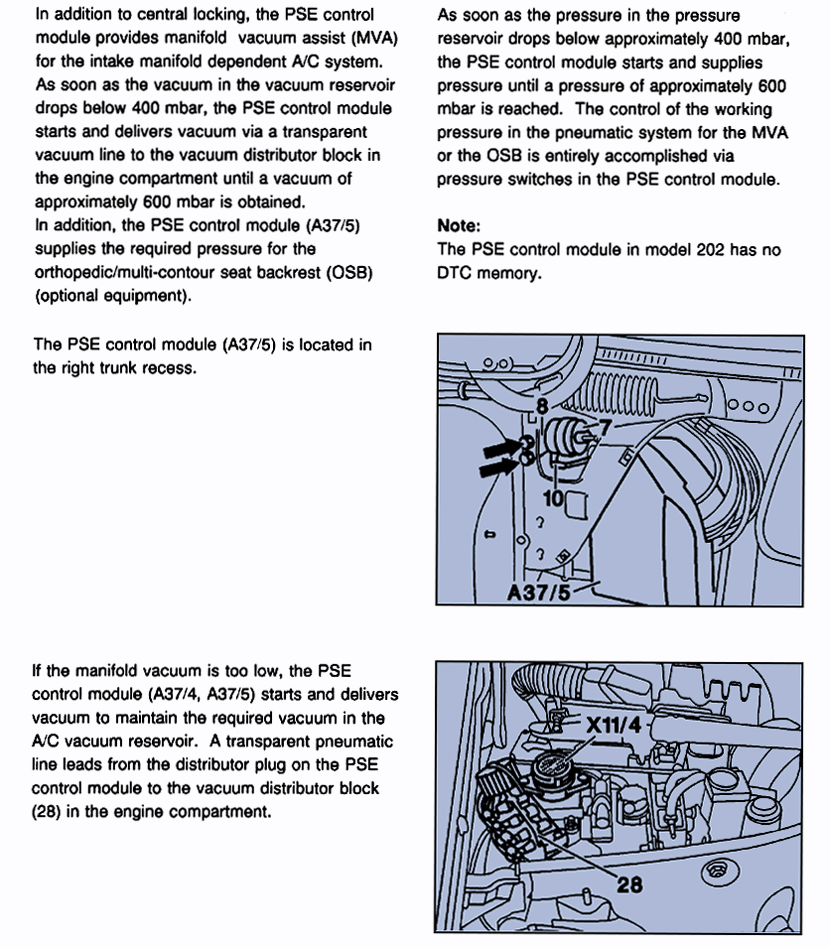

The Pneumatic System Control Module and Pump Assembly is located in the trunk.
