Traction Control / ABS: Anti-lock Brake System / Sensors


Whenever the magnetic field around the wire changes, a voltage will be induced.

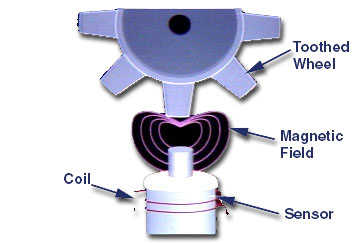

The front wheel speed sensor is installed in the steerning knuckle. A toothed-wheel is part of the front hub.  A shielded cable is used to screen out interference from other electrical components. A sensor an toothed wheel in the differential measures the average speed of both rear wheels.

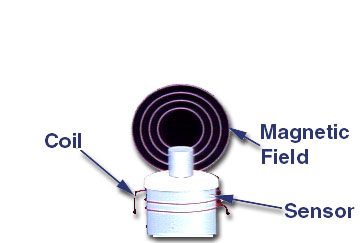

Each sensor has a magnetic core with a coil of wire wrapped around it. As you may recall from basic electrical theory, whenever the magnetic field around a wire changes, a voltage will be induced.
